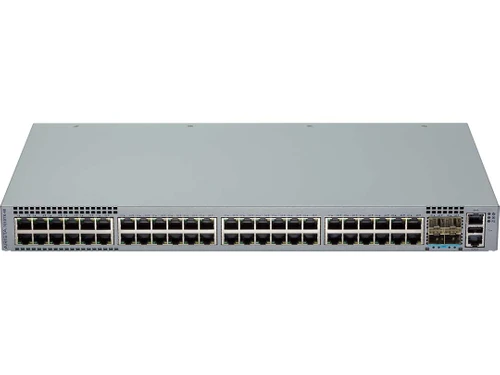

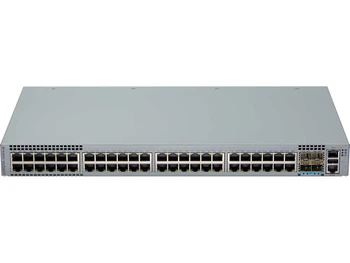

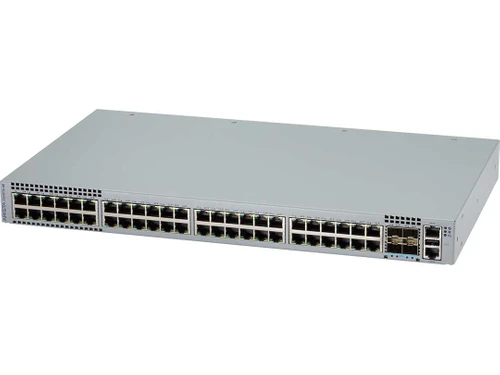

Arista 7010TX Series

What is Arista 7010TX Series?

Arista 7010X Series presents a purpose-built, high-performance, and power-efficient LAN switching tools tailored to a compact system's high-density data center deployments. Equipped with 48 ports of 10/100/1000 and 4 integrated 1/10/25GbE SFP ports, the switch ensures non-blocking forwarding of 296 Gbps, accompanied by feature-rich Layer 2 (L2) and Layer 3 (L3) switching capabilities.

Whether deployed as the server edge in 1Gb Ethernet leaf and spine designs or as a high-performance out-of-band (OOB) management network switch, the series ensures flexibility. It provides advanced automation, monitoring, and provisioning features consistently across all Arista switches, simplifying the management of mixed environments with uniform feature sets. The series supports various networking applications with flexible forwarding tables, including VXLAN and EVPN. The switches prioritize performance by utilizing low latency under 3 microseconds and a 4MB fully shared and dynamically allocated packet buffer.

Why Choose Arista 7010TX Series?

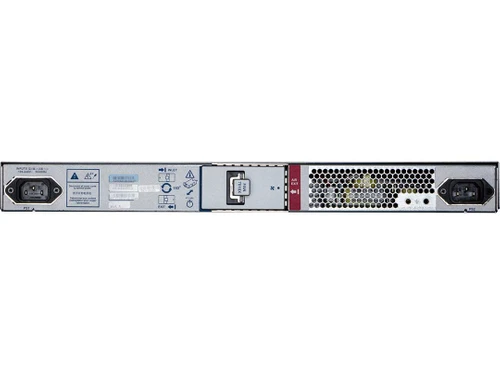

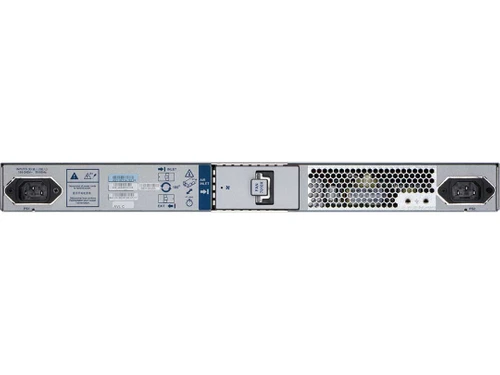

• The switching tool features 1+1 redundant internal power supplies to minimize the risk of downtime due to power supply failures.
• Its redundant and reversible dual inline fan module enhances system reliability and allows flexible airflow configurations.
• It offers a colour-coded fan module to indicate airflow direction and simplify installation tasks.
• The series incorporates self-healing software with Stateful Fault Repair (SFR) to identify and repair faults automatically.
• It allows in-depth analysis of network latency and the detection of microbursts for improved performance monitoring.

Benefits of Arista 7010TX LAN Switching Tool

• The switching tool supports Multi-Chassis Link Aggregation (LAG) for active/active Layer 2 multi-pathing.
• With 64-way Equal-Cost Multipath (ECMP) routing, the series enhances load balancing and redundancy in routing, optimizing network efficiency.
• It redirects mirrored traffic directly to the CPU for detailed analysis and monitoring.
• With support for up to four active sessions, it enables the simultaneous monitoring of multiple network segments for enhanced visibility.
• It allows administrators to filter specific layers and protocols using L2/3/4 Filtering on Mirror Sessions.

Technical Specifications of Arista 7010TX Series

• Advanced Switching: Layer 3
• Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Form Factor (Hubs & Switches): Rack-mountable
• Jumbo Frame Support: 9216 bytes
• MAC Address Table Size: 64K entries
• Ports: 48
• Remote Management: CLI, RMON, RMON 2, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
• Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), ECMP, IGMP, IGMPv2, IGMPv3, IS-IS, Multiprotocol BGP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-2, URPF, Virtual ARP (VARP), VRRP
• Switching Type: Gigabit Ethernet
• Port Quantity: 48
• Port Type: 10/100/1000
• Ports Type (2nd): 1 Gigabit / 10 Gigabit / 25 Gigabit SFP+ (uplink)

Arista 7010TX Series Pricing

Arista 7010TX Series pricing details are available on request at techjockey.com.

Its price in India may vary based on factors like customization, additional features required, the number of users, and the deployment type. Please request a call back for subscription-related details and to avail offers on premium packages.
