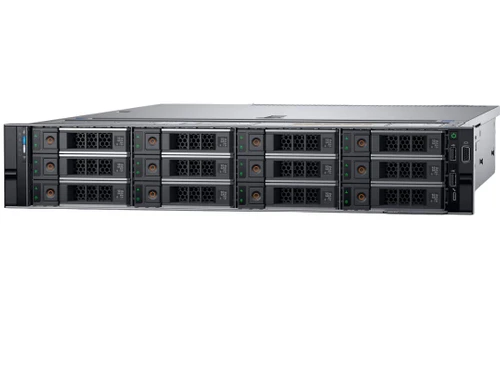

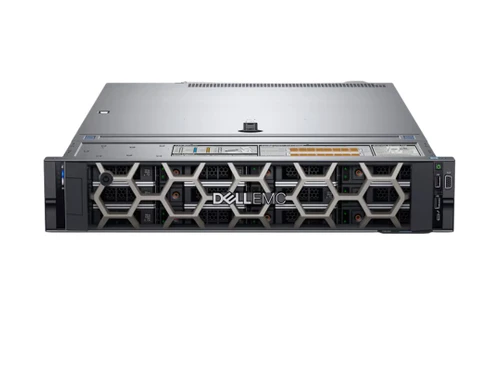

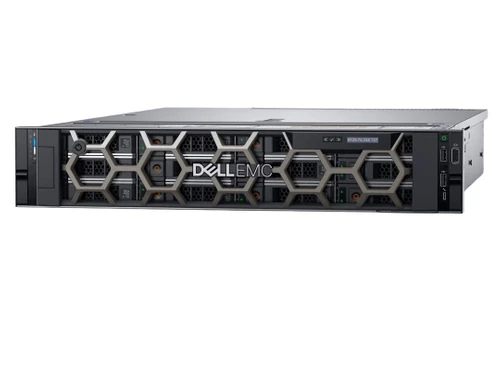

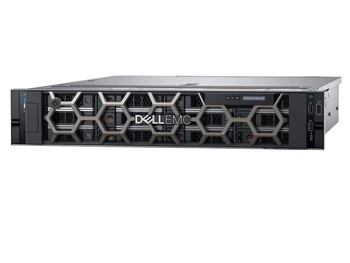

Dell PowerEdge R540 Rack Server

Sold by : Dell

PRICE ON REQUEST

Be the first to Review this product

Get Dell PowerEdge R540 Rack Server support14 Chatting right now

iconTechjockey Buyer Protection

  • icon Trust Pay
  • icon Support
  • icon Easy Checkout

About Dell PowerEdge R540 Rack Server

The PowerEdge R540 delivers the versatility and flexibility to power a variety of applications. With a balanced set of resources, expandability and affordability the R540 adapts to the demands of the modern data center with the ideal value optimized design. Automatically optimize performance with one button application tuning and scale for future demands with up to 14 3.5” drives.

Sold By : Dell

Get Dell PowerEdge R540 Rack Server support 14 Chatting right now

Techjockey Buyer Protection

  • iconTrust Pay
  • iconSupport
  • icon Easy Checkout

Dell PowerEdge R540 Rack Server Features

Up to two 2nd Generation Intel Xeon Scalable processors, up to 20 cores per processor
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max
Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB External PERC (RAID): H840 External HBAs (non-RAID): 12 Gbps SAS HBA
Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB Optional DVD-ROM, DVD+RW
Platinum 495W, 750W, 750W 240V HVDC, 1100W, 1100W 380V HVDC Hot plug power supplies with full redundancy option
Rack (2U)
Height: 86.8mm (3.41”) Width: 434mm (17.08”) Depth: 693.81mm (27.31”) Weight: 29.68kg (65.43lbs)
iDRAC9 iDRAC Direct
OpenManage integrations: Microsoft System Center, VMware vCenter, BMC Truesight, Red Hat Ansible Modules
Dell EMC Repository Manager Dell EMC Update Package Dell EMC System Update Dell EMC Server Update Utility iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services
TPM 1.2/2.0, TCM 2.0 optional Cryptographically signed firmware Silicon Root of Trust Secure Boot System Lockdown (requires OpenManage Enterprise) System Erase
Network options: 2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2 x 10GbE SFP+ or 2 x 10GbE BaseT Front ports: 1 x Dedicated iDRAC Direct USB, 1 x USB 2.0, 1 x Video Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video With Optional Riser: Non-rear storage config: 1xFH/FL + 1xHH/HL (2U Right riser) slots + 3 HH/HL slots Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser)
Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server LTSC with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
