Dell PowerEdge T140 Tower Server Features
-
Processor Specifications 1 processor from the following: Intel Xeon E-2100 product family, Intel Pentium, Intel Core i3, Intel Celeron -
Memory Specifications 4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC -
Storage Controllers Internal controllers: PERC H730P, H330, HBA330 (non-RAID) Software RAID: PERC S140 External HBAs: 12Gbps SAS HBA -
Drive Bays Up to 4 x 3.5” cabled bays -
Power Supply Single cabled 365W PSU -
Form Factor Mini tower server -
Physical Dimension Chassis height: 360mm (14.17 in) Chassis width: 175mm (6.89 in) Chassis depth: 454 mm (17.9 in) Chassis weight: 11.84 kg -
Embedded Management iDRAC9 with Lifecycle Controller iDRAC Direct iDRAC RESTful API with Redfish -
Integration Microsoft System Center VMware vCenter BMC Truesight (available from BMC) Red Hat Ansible -
Tools iDRAC Service Module OpenManage Server Administrator Dell EMC Repository Manager Dell EMC System Update Dell EMC -
Security TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust Secure Boot System Lockdown (requires -

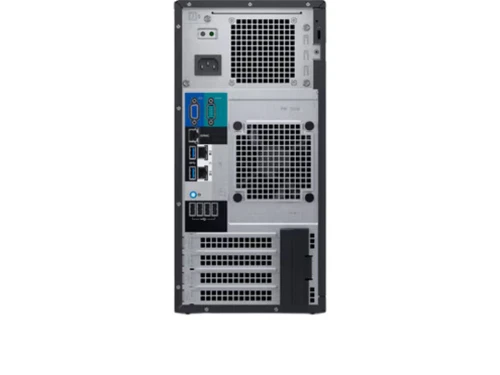

I/O & Expansion 2 X 1GbE LOM Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, -
Operating System Certify XenServer Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux Ubuntu Server SUSE Linux
