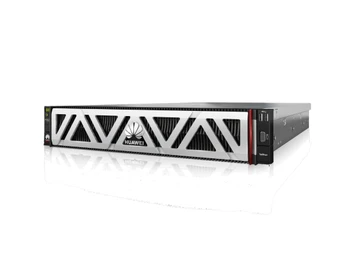

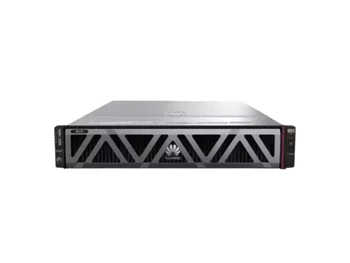

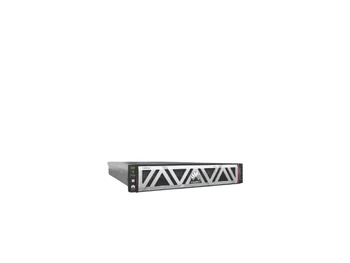

TaiShan Servers

TaiShan 200 Servers



1280 High-Density Model

» 2 Kunpeng 920 processors
» 32 DDR4-2933 DIMMs
» Up to 10 x 2.5'' SAS/SATA HDDs or 8 x 2.5'' NVMe SSDs
» Up to 2 PCIe 4.0 x16 + 1 PCIe 4.0 x8 slot
» 2 FlexIO cards (each card: 4 x GE electrical ports, or 4 x 10GE optical ports, or 4 x 25GE
optical ports)

2180 Balanced Model

» 1 Kunpeng 920 processor
» 16 DDR4-2933 DIMMs
» Up to 14 x 3.5'' and 2 x 2.5'' SAS/SATA HDDs or SSDs
» 3 PCIe 4.0 x8 or 1 PCIe 4.0 x16 + 1 PCIe x8 slot
» 1 FlexIO card, supporting 4 x GE electrical ports

2280 Balanced Model

» 2 Kunpeng 920 processors
» 16/32 DDR4-2933 DIMMs
» 16 x 3.5'' or 27 x 2.5'' SAS/SATA HDDs or SSDs, or 16 x 2.5'' NVMe SSDs
» 8 PCIe 4.0 x8 or 3 PCIe 4.0 x16 + 2 PCIe x8 slots
» 2 FlexIO cards (each card: 4 x GE electrical ports, or 4 x 10GE optical ports, or 4 x 25GE optical ports)

2280E Edge Model

» 2 Kunpeng 920 processors
» 16 DDR4-2933 DIMM slots
» Up to 10 x 2.5'' SAS/SATA HDDs or 8 x 2.5'' NVMe SSDs
» Up to 6 PCIe 4.0 x8 slots
» 1 FlexIO card, supporting 4 x GE electrical ports, or 4 x 10GE optical ports, or 4 x 25GE
optical ports
» Operating temperature: Short-term: –5°C to +55°C; long-term: 0°C to 45°C
» 495 mm chassis depth

2480 High-Performance Model

» 4 Kunpeng 920 processors
» 32 DDR4-2933 DIMMs
» 24 x 2.5'' NVMe SSDs or 8 x 2.5'' SAS/SATA HDDs or SSDs
» 7 PCIe 4.0 x8 + 2 PCIe x16 slots
» 1 FlexIO card, supporting 4 x 10GE or 4 x 25GE optical ports; 1 LOM NIC, supporting 4 x GE
electrical ports

5290 Storage Model

» 2 Kunpeng 920 processors
» 32 DDR4-2933 DIMMs
» 72 x 3.5'' SAS/SATA HDDs or SSDs, 2 x 2.5'' SATA HDDs or SSDs, and 4 x 2.5'' NVMe SSDs
» 6 PCIe 4.0 x8 or 1 PCIe 4.0 x16 + 4 PCIe x8 slots
» LOM: 4 x GE electrical ports + 4 x 10/25GE optical ports

5280 Storage Model

» 2 Kunpeng 920 processors
» 16/32 DDR4-2933 DIMMs
» 40 x 3.5'' SAS/SATA HDDs or SSDs, and 4 x 2.5'' NVMe SSDs
» 8 PCIe 4.0 x8 or 3 PCIe 4.0 x16 + 2 PCIe x8 slots
» 2 FlexIO cards (each card: 4 x GE electrical ports, or 4 x 10GE optical ports, or 4 x 25GE
optical ports)

X6000 High-Density Model

» 4 XA320 nodes in a 2U chassis
» 2 hot-swappable 3000 W AC PSUs in 1+1 redundancy mode
» 4 hot-swappable fan modules in N+1 redundancy mode


XA320 High-Density Compute Node

» 2 Kunpeng 920 processors
» 16 DDR4-2933 DIMMs
» 6 x 2.5'' SAS/SATA/SSD/NVMe SSDs
» Up to 1 PCIe 4.0 x16 + 1 PCIe 4.0 x8 slot
» 2 x GE electrical ports + 1 x 100GE optical port or 2 x GE electrical ports + 2 x 25GE optical
ports



TaiShan 100 Servers



2280 Balanced Model

» 2 Kunpeng 916 processors
» 16 DDR4 DIMMs
» 16 x 3.5'' or 27 x 2.5'' SAS/SATA HDDs or SSDs
» 5 PCIe 3.0 x8 expansion slots
» LOM: 2 x 10GE + 2 x GE ports

5280 Storage Model

» 2 Kunpeng 916 processors
» 16 DDR4 DIMMs
» 40 x 2.5'' or 3.5'' SAS/SATA HDDs or SSDs
» Up to 5 PCIe 3.0 x8 expansion slots
» LOM: 2 x 10GE + 2 x GE ports
