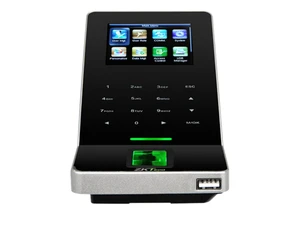

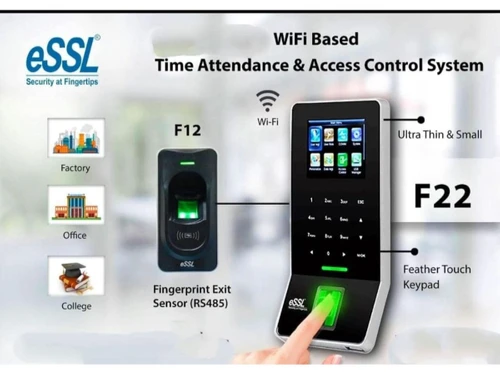

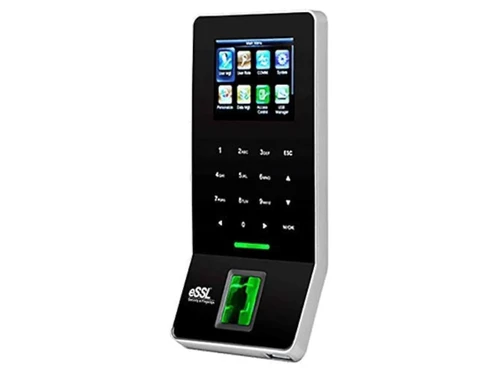

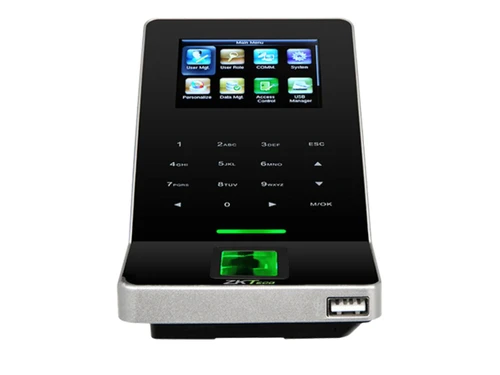

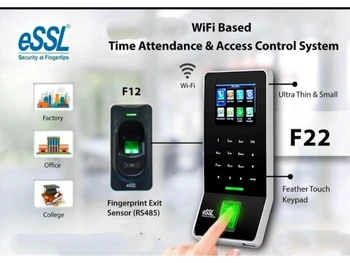

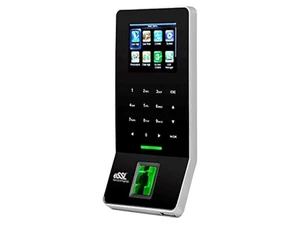

F22 Biometric Machine

What is F22 Biometric Machine?

F22 Biometric Machine is one of the leading biometric devices in the country that is manufactured by eSSL. It comes inbuilt with a 2.4 inch TFT touch screen and color keys, exit button, door sensor, and an alarm. The machine finds extensive usage in the government sector. The Government of India uses this biometric device to stand ahead of others when it comes to matters of safety and security. It can operate at a temperature ranging from 0-degree Celsius to 45-degree celsius. F22 biometric machine can work at a humidity range of 20-80%. The product comes with a third-party access control interface that allows users to have access to a third-party electric lock.

What are the specifications of the F22 Biometric Machine?

The device comes with an ultra-thin fingerprint time attendance and access control system. The specifications of the device are:

1. Display: 2.4 inch TFT LCD Color Screen
2. Fingerprint Capacity: 3000
3. Transaction Capacity: 30000
4. Card Capacity: 5000
5. Sensor: SilkID Sensor
6. Access Control Interface: 3rd party electric lock, door sensor, alarm, and an exit button
7. Communication: RS232/485, Wi-Fi, TCP/IP, USB Host
8. Wiegand Signal: Both input and output
9. Auxiliary Input: 1ea for linkage function

What are the functions of F22 Biometric Machine?

The functions of F22 Biometric Machine are:

1. Ultra-thin and beautiful design
2. Standard Wi-Fi
3. Full access control functionalities such as anti-passback, and access control interface designed for a third-party electric lock, exit button and door sensor
4. Network Interface by TCP/IP or RS485
5. 2.4 inch TFT color screen with touch keys
6. Built with flexible auxiliary input to link with an emergency switch or wired detector
7. Multi-verification modes providing users with multiple choices.

Pricing of F22 Biometric Machine

The F22 Biometric Machine starts at Rs. 7856/-.

How does the F22 Biometric Machine perform different operations?

1. In order to set the date and time settings, one needs to press M/OK icon to enter the main menu > System > Date and Time options to set them accordingly.
2. You can add users by pressing M/OK icon >  User management > Add New User to the interface.
3. Wi-Fi settings can be changed by pressing M/OK icon to enter the Main Menu > Communications > Wireless Network OR by pressing M/OK icon to open Wi-Fi and search for one within the network.
4. ADMS settings can be altered by pressing the M/OK icon to enter the Main Menu > Communications > ADMS to set the parameters.
5. To provide access control settings, users need to press M/OK icon to enter the Main Menu > Access Control to set the access control setting interface.
