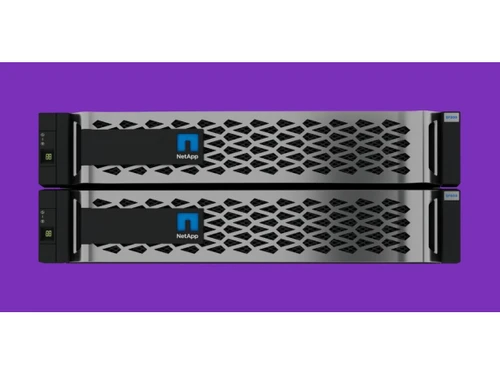

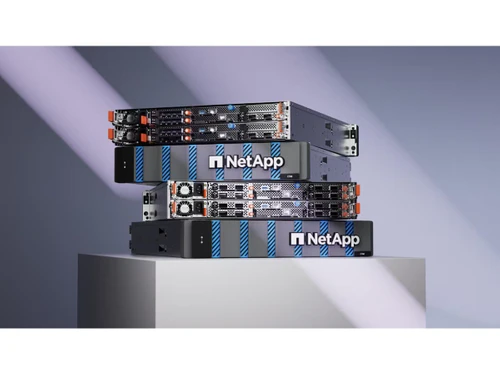

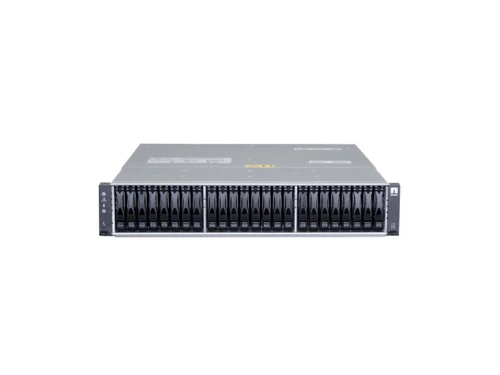

NetApp EF-Series Overview

What is NetApp EF-Series?

NetApp EF-Series is a combination of intelligent, powerful, and trustworthy systems that delivers microsecond responsiveness for demanding applications, maximum uptime, and six-nines reliability. Inbuilt functionalities of NetApp EF-Series speak volumes when customers need to pull ahead workloads that are performance-sensitive, like HPC, real-time analytics and database.

Moreover, NetApp EF-Series combines microsecond response times, impressive IOPS and incredible throughput capacity. The entire series is also equipped with NetApp SANtricity software, which enables customers to get access to a wide range of setup options, unique performance tweaking facilities and total data placement management protocols.

EF-Series all-flash arrays are ready, willing, and equipped for whatever action comes on the way, starting from big data analytics to high-performance computing (HPC) and everything in between. Businesses can also depend on tNetApp EF-Series to streamline HPC performance for data-intensive and petabyte-scale applications.

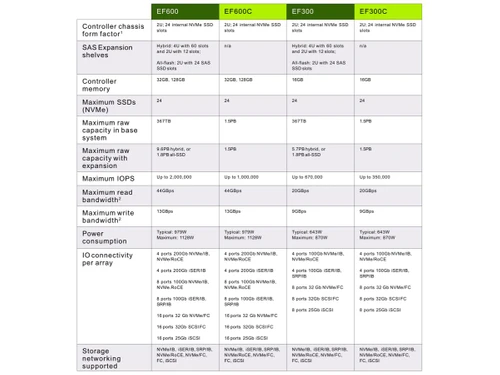

Technical Specifications of NetApp EF-Series

Features NetApp EF600 NetApp EF300 NetApp EF570 NetApp EF280
Height 3.43” 3.43” 3.47” 3.47”
Width 19.02” 19.02” 19” 19”
Maximum IOPS 2,000,000 670,000 1,000,000 300,000
Sustained throughput Up to 44GBps Up to 20GBps Up to 21GBps Up to 10GBps
Max raw capacity in base controller enclosure 367TB 367TB 367TB 367TB
Drive types supported SSD (NVMe), SED: 1.9TB, 7.6TB and 15.3TB, FIPS: 3.8TB, Non-SED: 1.9TB and 3.8TB SSD (NVMe), SED: 1.9TB, 7.6TB and 15.3TB, FIPS: 3.8TB, Non-SED: 1.9TB and 3.8TB SSD (SAS), Non-SED: 800GB, 1.6TB, 7.6TB and 15.3TB, FIPS: 1.6TB, SED: 3.8TB and 15.3TB SSD (SAS), Non-SED: 800GB, 1.6TB, 7.6TB and 15.3TB, FIPS: 1.6TB, SED: 3.8TB and 15.3TB
Form factor Base system: 2U/24 Base system: 2U/24, Expansion shelves: 4U/60 and 2U/12 hybrid; 2U/24 all-flash Base system: 2U/24, Expansion shelf: 2U/24 Base system: 2U/24, Expansion shelf: 2U/24
System memory 32GB, 128GB 32GB 32GB, 128GB 16GB, 64GB

Pricing of NetApp EF-Series

The price of NetApp EF-Series is available on request. Interested buyers can generate a callback request to connect with product experts.

NetApp EF-Series Inbuilt Functionalities

Features Description
High availability features
  1. Storage controllers, discs, power supply units (PSUs), and fans that are redundant and hot-swappable.
  2. After a drive failure, an automatic rebuild is performed.
  3. Mirrored data cache with battery-powered flash destaging functionalities
  4. Continuous monitoring of the health of the drive
Security features
  1. RBAC with audit log
  2. LDAP/LDAPS for user authentication
  3. Digital certificate management
  4. Certified under common criteria
Optional features
  1. SANtricity drive security data at rest encryption

NetApp EF-Series Plans & Pricing

NetApp EF-Series price is available on request

Looking for pricing details, customization requirements or have other queries? We are just a click away.

NetApp EF-Series Features

Powerful & Affordable Performance

NetApp EF300 and EF280 arrays are optimised for mixed workloads including big data analytics and databases

Database High Availability

Both the architecture and software design of NetApp EF-Series are capable of offering extensive diagnostic capabilities.

Secure Data

NetApp SANtricity merges essential management along with drive-level encryption.

Data Protection

Storage managers can use SANtricity DDP technology to simplify RAID administration, increase data safety.

DevOps-Ready System

Robust support for Ansible is offered to allow the automation and agility for DevOps-minded teams.

Security

Access to NetApp EF-Series can be protected using role-based access facilities like RBAC, Active Directory and LDAP

Proven Simplicity

NetApp EF-Series runs on enterprise-proven SANtricity OS and maximises performance via custom tuning.

NetApp EF-Series Specifications

  • Suitable For :
  • Business Specific:
  • All Industries
  • All Businesses

NetApp Brand Details

Brand Name NetApp
Information NetApp is a hybrid cloud data services company .
Founded Year 1992
Director/Founders Dave Hitz, James Lau, Michael Malcolm, Michiaki Kono
Company Size 1000+ Employees
Other Products NetApp HCI, NetApp VDI, NetApp E2800 Series Express Pack, NetApp AFF C190 , NetApp AFF A-Series

NetApp EF-Series FAQ

A. NetApp EF-Series is equipped with features like SANtricity volume copy, SANtricity Snapshot, and Remote Storage Volumes in all the versions, besides SANtricity asynchronous and synchronous mirroring in EF570 and EF280.
A. System management functionalities of NetApp EF-Series include SANtricity System Manager(web-based and on-box).
A. EF600: Typical: 0.979 Maximum: 1.128 EF300: Typical: 0.646 Maximum: 0.872 EF570: Typical: 0.522 Maximum: 0.665 EF280: Typical: 0.522 Maximum: 0.665
A. EF600: 24.34Kg EF300: 24.34Kg EF570: 23.42Kg EF280: 21.27Kg
A. Yes, all EF-Series devices are compliant with the A4 certification mandates mentioned by ASHRAE.
