BitScope DSO

What is BitScope DSO?

BitScope DSO is an advanced oscilloscope software that integrates a comprehensive suite of test instruments into a user-friendly software package. This versatile tool combines functionalities such as Digital Storage Oscilloscope, Mixed Signal Oscilloscope, Spectrum Analyzer, Logic Analyzer, Data Recorder, and Networking capabilities into a single, easy-to-use application.

Leveraging BitScope's mixed mode waveform and logic data capture capabilities, DSO stands out by offering additional features like arbitrary waveform generation (AWG), networked access for remote measurement, offline captured waveform replay, and multiscope control, all accessible within a unified PC software application.

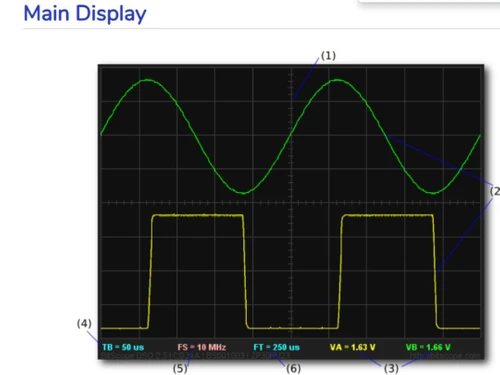

Its single-window interface surrounds a large display, providing instant access to parameters without navigating through nested menus. With features like dynamic redraws and high-resolution image displays, DSO achieves display frame rates beyond 50 Hz, offering real-time insights into deep one-shot mixed mode captures or dynamic analogue waveform displays.

The software maximizes BitScope's high-speed deep buffer capture engine, ensuring high bandwidth oscilloscope capabilities with powerful signal processing and waveform rendering. DSO includes a built-in spectrum analyzer that adapts automatically to current settings, providing optimum resolution power and phase spectrum for on-screen waveforms.

BitScope DSO also excels in communication, supporting various connection methods, including USB, Ethernet, and RS-232, with auto-detection of connected BitScope models and a self-correcting communications protocol for seamless operation.

Why Choose BitScope DSO Software?

• Comprehensive Integrated Functionality: Access a suite of test instruments in one application, streamlining the analysis process without needing multiple tools.
• Efficient Communication: Auto-detection and self-correcting communications protocol ensure seamless connectivity with BitScopes, facilitating hassle-free operation.
• Platform Flexibility: Compatible with Windows, Mac OS X, and Linux on x86 and ARM systems, catering to diverse user preferences and requirements.
• Real-Time Visualization: Experience real-time insights into signal behavior, whether deep one-shot captures or dynamic analog waveform displays.
• Virtual Instrument Software: The software accelerates acquisition and data processing within the familiar PC environment, offering an integrated and efficient application.

Benefits of BitScope DSO Platform

• Integrated Test Instruments: Access a full range of test instruments, including oscilloscope, spectrum analyzer, logic analyzer, and more, within one user-friendly software package.
• Seamless Mixed Mode Capture: Benefit from powerful mixed mode waveform and logic data capture capabilities for a comprehensive analysis of signals
• Real-Time Insights: Achieve display frame rates beyond 50 Hz, providing real-time insights into deep captures or dynamic analog waveform displays.
• High Bandwidth Capabilities: Utilize BitScope's high-speed deep buffer capture engine for powerful signal processing, ensuring full capture and high-frequency noise visibility.
• Built-In Spectrum Analyzer: Instantly analyze full spectra at the click of a button, adapting automatically to current DSO settings for optimum resolution
• Flexible Display Modes: Easily switch between different display modes, including mixed signal scope, logic analyzer, X-Y plot, or time/frequency display, providing versatility in data visualization.

Pricing of BitScope DSO Oscillation Software

BitScope oscillation software is available for free at techjockey.com.
