Visual Analyser

What is Visual Analyzer?

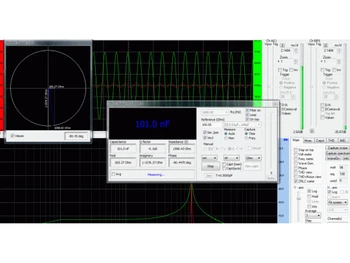

Visual Analyzer is an advanced soundcard oscilloscope software that empowers users to visualize and analyze audio signals in real-time. The software displays two functions simultaneously, with the oscilloscope view occupying the top half of the screen and the audio spectrum analyzer view occupying the bottom half. This arrangement allows users to visualize two critical aspects of audio signals simultaneously.

The oscilloscope software incorporates various measurement tools such as an RMS or peak-reading AC voltmeter, an audio frequency counter, and an audio phase meter capable of reading phase differences between two channels. Furthermore, it includes an audio distortion meter for SINAD-type measurements, an audio function generator supporting sine, square, sawtooth, and pulse waves, and an audio sweep generator that dynamically tracks the scope for creating audio frequency-response plots.

Why Choose Visual Analyzer Software?

• The oscilloscope software measures voltage levels with additional displays for true RMS, peak-to-peak, mean values, and resolution calculations.
• It offers a variety of filters to shape and manipulate signals by removing or isolating specific frequencies.
• The software allows capturing images of displayed waveforms and spectra for documentation, sharing, or further analysis.
• It enables the creation and application of custom frequency responses and standard weighting curves (A, B, C) to adjust spectrum analyzer measurements.
• The oscilloscope software employs high-precision numerical calculations to minimize rounding errors and ensure accuracy in measurements.

Benefits of Visual Analyzer Platform

• The oscilloscope software enables the creation of custom finite impulse response (FIR) filters for signal shaping and noise reduction.
• It measures impedance, resistance, inductance, and capacitance with automatic sweeps for efficient and accurate analysis.
• The tool allows adjusting the software's scales directly in volts, decibels, or per cent full scale to ensure accurate readings.
• It displays key signal parameters (peak-to-peak, peak, crest factor, form factor, true RMS, mean, frequency) instantly for dynamic insights.
• The oscilloscope software allows you to record and playback wave files within the software for offline analysis and comparison.

Pricing of Visual Analyser Oscilloscope Software

Visual Analyser oscilloscope software is available for free at techjockey.com.

For subscription-related details and offers on premium packages, please request a call back from our product experts.
