Rohde & Schwarz Oscilloscope software

What is Rohde & Schwarz Oscilloscope Software?

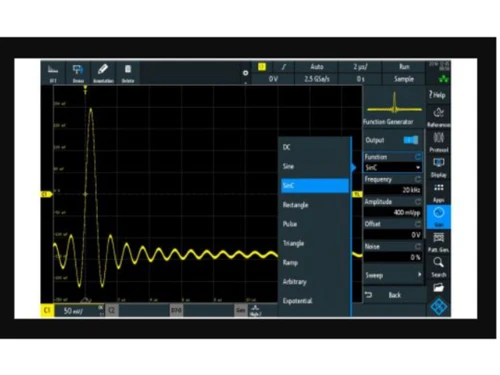

Rohde & Schwarz Oscilloscope software allows you to download and analyze waveform data efficiently. It displays up to 8 waveforms, performs automatic measurements like amplitude and frequency, and allows annotations and cursor usage for basic signal analysis.

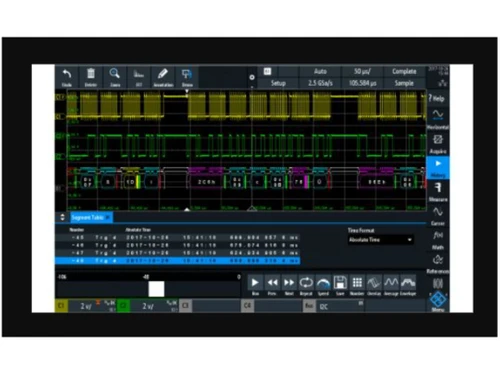

The software's capabilities extend to supporting the triggering and decoding of Controller Area Network (CAN) and Local Interconnect Network (LIN) buses.

The software ensures a swift setup for decoding and allows users to configure their analysis environment within seconds. It facilitates In-depth analysis through the presentation of results in colour-coded telegrams and a tabulated format. The software's advanced triggering capabilities encompass the ability to trigger at the start of the frame, frame ID, data content, and various error conditions.

Why Choose Rohde & Schwarz Oscilloscope Platform?

• The oscilloscope software allows you to capture specific events accurately based on various criteria like edge, pulse width, or logic patterns.
• It allows you to isolate and decode specific packets on various serial buses like I2C, SPI, and CAN for efficient debugging.
• The program allows you to evaluate signal integrity and timing margins for high-speed serial data transmission.
• It enables you to calculate and analyze various power parameters like voltage, current, and harmonics for efficient power conversion evaluation.
• The oscilloscope software allows you to perform specific tests as per industry standards like USB, EMI, or automotive radar for product validation.

Benefits of Rohde & Schwarz Oscilloscope Solution

• The oscilloscope software allows you to perform preliminary radiated and conducted emissions tests to identify potential electromagnetic interference issues.
• It allows you to measure and visualize the frequency response of circuits and devices for gain and phase characterization.
• The program allows you to review and analyze previously captured waveforms or segments for deeper insights and troubleshooting.
• You can perform various mathematical operations on waveforms for data manipulation and analysis.
• The oscilloscope software allows you to quantify and characterize timing variations in signals for precise performance evaluation.

Pricing of Rohde & Schwarz Oscilloscope System

Rohde & Schwarz oscilloscope system is available for free at techjockey.com.

For subscription-related details and offers on premium packages, please request a call back from our product experts.
