CSiBridge

What is CSiBridge?

CSiBridge is a graphic designing software used by engineers for modeling, analysis, and design of bridge structures. It automates the process to improve user’s efficiency and accuracy and can be embedded with most devices and applications. CSiBridge is a designing tool that utilizes terms that are familiar to bridge engineers such as layout lines, bents, lanes, etc. for the construction of conventional concrete and steel bridges. It also branches out to several other types of bridge structures such as cable-styled, suspension bridges, et cetera.

CSiBridge is a 3D designing software that effortlessly defines complex geometries, boundary state, and load cases for bridge construction.

Features of CSiBridge:

CSiBridge provides a lot of features for engineers to ease of their business functions. Here are some listed for you:

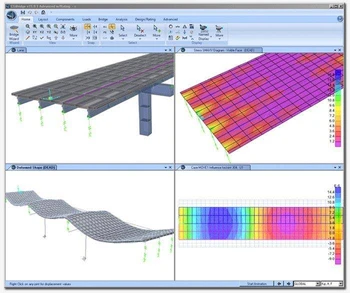

1. Multiple Viewing in Single Screen: CSiBridge provides a single interface for all your designing needs. It gives modeling, analysis, designing, scheduling load rating, and reporting on a single screen.

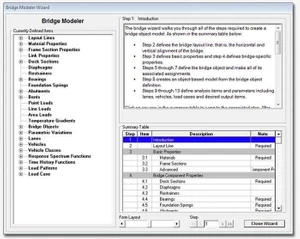

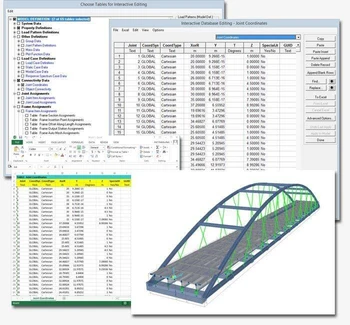

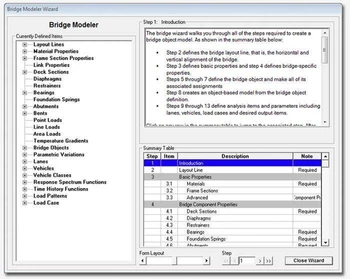

2. Modeling: CSiBridge gives its users several templates for rapid initiation of work. It provides you model or structure as a starting point to create a bridge. It gives you the ability to make design and do modifications after selection. Interactive Database Editing: CSiBridge interactive database editing to engineers; that allows them to edit modeling data in a tabular format. It simplifies the task of inducing changes to the model. Tables are easy to export and import from Microsoft Excel and Microsoft Access.

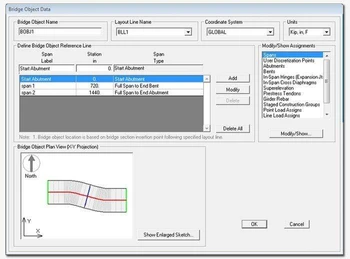

3. Bridge Object Model: Bridge Object model is a complete collection of components that make up the entire bridge model. The parametric model is handled via the bridge object model. It includes elements like the modeling of deck sections, diaphragms, restrainers, superstructure variation, and more.

Prices for CSiBridge

CSiBridge prices vary depending on the organizational needs, please request a call and our sales expert will get in touch with you as soon as possible.

System Requirement for CSiBridge

Processor

1. Minimum: Intel Pentium 4 or AMD Athlon 64
2. Recommended: Intel i5/i7, AMD Athlon X4/Ryzen, or better
3. A 64-bit CPU is required
4. The SAPFire® Analytical Engine includes multi-threaded solvers and algorithms that can take advantage of multi-core CPUs. The design algorithms can also utilize multiple cores.

Operating System

1. Microsoft® Windows 7, Microsoft® Windows 8 or Microsoft® Windows 10
2. 64-bit processor

Video Card

1. Minimum: Supporting 1024 by 768 resolution and 16 bits colors for standard (GDI+) graphics mode
2. Recommended: Discrete video card with NVIDIA GPU or equivalent and dedicated graphics RAM (512 Mb or larger) for DirectX graphics mode. The card must be DirectX 11 Compatible.
3. DirectX graphics mode fully utilizes the hardware acceleration provided by a GPU and dedicated graphics RAM.
4. For better graphics quality in terms of anti-aliasing and line thickness, the device raster drawing capabilities should support legacy depth bias.

Memory

1. Minimum: 8 GB RAM
2. The problem size that can be solved and the speeds for solution & response recovery increase considerably with more RAM.

Disk Space

1. 6 GB to install the software.
2. Additional space will be required for running and storing model files and analysis results, dependent upon the size of the models
3. Recommended: 500GB or larger PCIe Solid State Drive (SSD). External and network drives are not recommended.
